Understanding K-Line ISO 9141
Mostly found in the automotive industry for diagnostics and programming system parameters, K-Line ISO 9141 is a
communication protocol that forms part of the
International Organization for Standardization (ISO). It is designed
to provide a communications link between the vehicle’s on-board

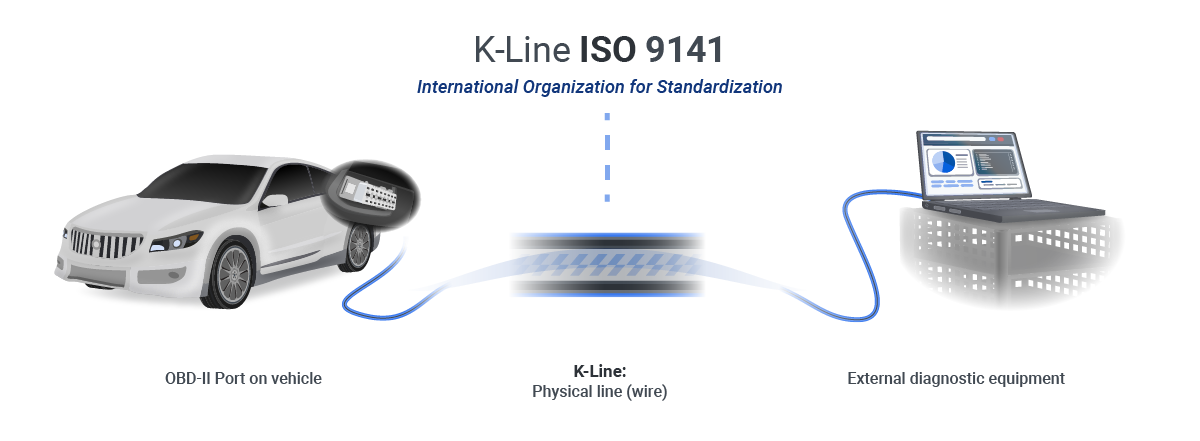

diagnostics system (OBD) and your mechanic’s external diagnostic equipment. The K-Line part of the name
refers to the type of physical wire connection issued, while ISO 9141 refers to the communication standard it.
Detailing ISO 9141 for Users
If you are looking to diagnose faults in a vehicle, ISO
9141 is one of the standards commonly used for serial data
communication between your diagnostic equipment and vehicle electronic control units
(ECUs) . The goal was to standardize vehicle diagnostics, so that you can use one diagnostic tool to talk to
vehicles from most if not all manufacturers.
It outlines the specification for signaling methods, data format, and timing for communications over the K-Line,
providing a framework that your diagnostic tools can work within.
The Key Features of K-Line ISO 9141
K-line ISO 9141 has some features that are designed to make it a perfect choice for your automotive communications
needs, these are:
Single-wire Communication: ISO 9141 uses K-Line, a single wire to connect the two devices you want to
communicate.
Baud Rate: With a speed of 10.4 kbit/s, It offers relatively fast, reliable data transfer for your
diagnostics.
Bidirectional Communication: Your diagnostic equipment can both send and receive data from the ECU,
allowing for programming as well as diagnosis.
Compatibility: It is an industry wide standard, especially if you have a lot of older vehicles to
work on.

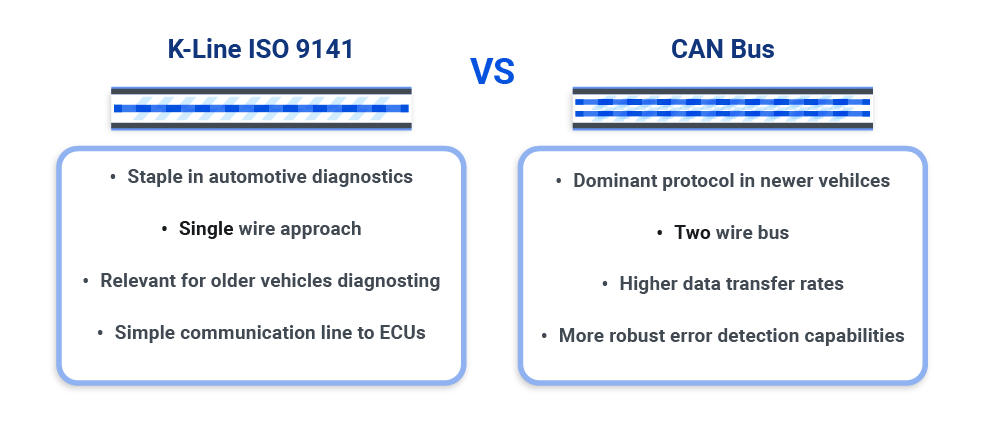

K-line ISO 9141 or CAN Bus?
Despite being purpose designed for the job, and K-Line ISO 9141 being an widely accepted solution in automotive
diagnostics, in newer vehicles a different protocol has begun to dominate. The Controller Area Network, or CAN bus ,
uses a 2-wire solution, compared to the single wire ISO 9141 protocol, so offers higher transfer rates for data
alongside improved error detection capabilities. If you have older vehicles yourself, or are likely to work on them
as a mechanic though, K-Line ISO 9141 still has a place in the automotive industry.
Using K-Line ISO 9141 in Automotive Diagnostics
K-Line ISO 9141 is a simple protocol that makes your diagnostic process fast and easy. You simply connect your
compatible diagnostic tool to the vehicle’s OBD port ,
and it automatically connects to the ECU via the K-Line. Once
connected, you can view fault codes, program adjustments in ECU systems, enable real-time data logging, and more. It
is user-friendly and reliable-everything you want from your diagnostic system-and it allows you to perform a
number of tasks:
Reading Diagnostic Trouble Codes (DTCs): You can read DTCs and quickly identify where a
problem is originating from.
Live Data Monitoring: K-Line enables the real-time observation of vehicle parameters, such as engine
temperature, throttle position , and fuel
efficiency , assisting in pinpointing irregularities.
ECU Programming: Some vehicles allow for ECU updates and reprogramming via K-Line, enabling
performance enhancements or feature unlocks.
Sensor Calibration: You can calibrate newly fitted sensors to ensure they perform at their best.
AutoPi Mini and K-Line ISO 9141 Support
The AutoPi Mini is a device that supports legacy K-Line
communications, making it easier to diagnose older vehicles.
Whether it is reading error codes or real-time data
logging to identify intermittent issues, incorporating K-Line
ISO 9141 support means that the AutoPi Mini makes life a lot easier for those who own or service these vehicles.
The advantages are clear:
Legacy Vehicle Support - While many modern diagnostics tools are incompatible with older vehicles,
AutoPi Mini bridges the gap, giving the modern,
user-friendly interface you want and compatibility with your older vehicles.
Simplifies Complex Diagnostic Needs - For traditional, single wire K-Line diagnostics, it can be
extremely difficult to pin down faults due to the lack of real time data logging. However, AutoPi Mini
provides compatibility with K-Line ISO 9141 while implementing modern features such as real time data,
making it easier for you to identify those illusive faults.
Secure Remote Access - K-Line ISO 9141 requires you to physically plug a diagnostic device into the
OBD2 in your vehicle, but that may not always be
practical. AutoPi Mini adds secure remote access,
so you can perform diagnostics from any location you want.
Integration Challenges - Connecting older technology, like K-Line SO9141, with new systems is always a
challenge. However, AutoPi Mini is designed to
bridge the gap between modern diagnostics solutions and your
older vehicles. With the device in place, you can make full use of modern advances like remote data logging ,
without needing to worry about compatibility.
Learn more about how AutoPi Mini utilizes
K-Line ISO 9141 for advanced vehicle diagnostics.
By supporting K-Line ISO 9141, AutoPi Mini gives you the tools to maintain and enhance older vehicles, while also
adding modern communications and data logging that provide a level of convenience and accessibility that were not
otherwise possible. With AutoPi, you have the best of both worlds, the latest tech alongside continuing support for
legacy vehicles.
The Future of K-Line ISO 9141 in Automotive Technologies
While CAN bus offers more advanced communications, K-Line ISO 9141 remains important in providing effective
diagnostics for older vehicles. That ability to maintain these older cars is unlikely to lose its relevance, so we
can expect ISO 9141 to be an essential tool for automotive enthusiasts and professionals for many years to come.
Conclusion
While more advanced alternatives are leading the way now, K-line ISO 9141 remains an essential tool in automotive
diagnostics, especially for your older vehicles. It is your first choice if you want fast, simple diagnosis for your
older vehicles. More than that though, when combined with modern technology, such as the AutoPi Mini , it enables
remote, real-time logging and other advanced features all using your standard diagnostic tools.
The automotive industry will continue to evolve as it always does, but AutoPi Mini ensures that older vehicles can
take full advantage of any new advances. By using K-Line SO9141, you are ensuring that whether it is diagnostics or
telematics , all your vehicles can stay up to date.
