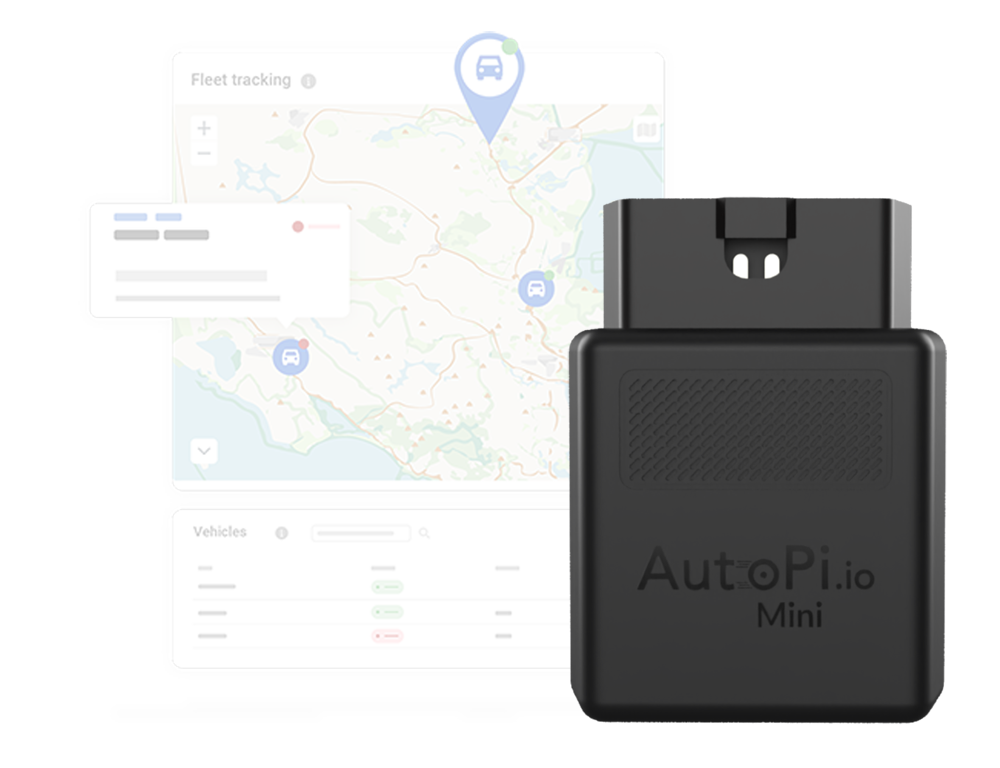

What are Fault Codes? Modern vehicles rely on distributed electronic control systems for powertrain management, safety functions, comfort features, and emissions control. These systems are coordinated by one or more Electronic Control Units (ECUs), which continuously monitor sensor inputs, validate operating conditions, and execute corrective actions. When a subsystem operates outside its expected boundaries, the ECU records a fault code that describes the type and location of the anomaly. These codes, also known as Diagnostic Trouble Codes (DTCs), follow a standardized structure across powertrain, chassis, body, and communication modules. Each code maps to a specific failure mode and severity, which allows technicians, engineers, and fleet operators to perform targeted troubleshooting instead of relying on trial-and-error replacement of components. AutoPi TMU devices read and expose these fault codes through OBD-II, CAN, and OEM-specific protocols such as UDS and manufacturer extensions. Codes can be logged, streamed, and correlated with other signals like mileage, state of charge, or temperature. This makes fault data usable in scheduled maintenance, warranty analytics, and fleet-wide reliability tracking rather than being confined to a handheld diagnostic tool. Discover Now What is a Pending Fault Code? Pending fault codes are stored when the ECU detects a condition that may represent a fault but does not yet satisfy the full confirmation criteria defined by OBD or OEM diagnostic standards. They are typically associated with intermittent, borderline, or early stage deviations that might clear on their own in the next drive cycle. The ECU tracks these conditions across multiple warm up or drive cycles. If the trigger condition persists according to the defined monitor strategy, the pending code is promoted to a confirmed or permanent DTC. Pending codes therefore act as early warnings that a component, sensor, or system is trending toward a repeatable fault and should be observed or scheduled for inspection. What is a Permanent Fault Code? Permanent fault codes represent confirmed issues that affect emissions, drivability, safety, or system performance. Unlike standard confirmed DTCs, permanent codes cannot be cleared manually using diagnostic tools or by disconnecting the battery. They remain stored until the ECU verifies, through a series of completed and fault free drive cycles, that the underlying condition has been resolved. Permanent codes are particularly important for emissions legislation and inspection programs that require proof that a fault has truly been corrected. They prevent premature clearing of codes just before an inspection and provide a more reliable history of how long a vehicle has operated with an active defect. Fault Codes as Diagnostic Signals Fault codes act as structured diagnostic signals produced by the ECU when monitored values fall outside calibrated limits or expected behavior. Each code is defined as part of a monitor, which specifies the enabling conditions, detection logic, and associated freeze frame data. Whether retrieved through a handheld code reader, workshop scan tool, or a connected telematics unit, these codes point directly to affected subsystems and help isolate the root cause more quickly. In connected fleets, fault codes become another data stream alongside CAN signals, position, and usage metrics. When captured continuously, they can be correlated with operating conditions, driver behavior, or environment, which turns one time workshop diagnostics into repeatable, data driven maintenance strategies. Stay Ahead of Vehicle Issues with AutoPi Mini The AutoPi Mini is a compact OBD telematics device that reads OBD-II, OEM specific, and many EV related parameters. Once installed, it begins collecting performance metrics, fault codes, and usage data without complex setup. Data can be streamed in real time, buffered during poor coverage, and forwarded to AutoPi Cloud or a custom backend. It supports a broad range of passenger and light commercial vehicles and retrieves both standard PIDs and extended manufacturer data where available. This enables continuous monitoring of health indicators, early detection of fault patterns, and direct integration of DTC information into existing maintenance, warranty, or fleet management systems. The AutoPi Mini Fault Code Structure Fault codes in OBD-II environments follow a standardized five character format. The first character is a letter that identifies the high level subsystem: P - Powertrain B - Body C - Chassis U - Network and communication The letter is followed by a four digit numeric identifier. The first digit typically indicates whether the code is generic (defined by the standard) or manufacturer specific. The remaining digits specify the subsystem and detailed failure mode. For example, P0300 denotes a random or multiple cylinder misfire, while related codes such as P0301 or P0302 point to specific cylinders. This structure allows diagnostic tools and backend systems to parse, classify, and visualise large volumes of fault data. It also makes it possible to build rule sets and maintenance strategies that react to classes of faults instead of single codes only. Conclusion Fault codes provide a consistent method for ECUs to report electronic, mechanical, and emissions related issues in a machine readable format. Understanding how they are generated, stored, and cleared allows technicians, fleets, and advanced users to reduce diagnostic time, detect developing issues earlier, and avoid unnecessary component replacement. When combined with connected telematics hardware such as AutoPi Mini and AutoPi TMU devices, fault codes move from one time workshop snapshots to continuous fleet signals. Integrated into AutoPi Cloud or your own backend, they become part of a broader data set that supports condition based maintenance, reliability engineering, and higher overall fleet uptime. Questions? Let us get in touch
