Understanding Accelerometers
An accelerometer is a type of sensor that is designed to measure the speed of movement, or acceleration, of an
object. You use them every day, because they are the sensors that detect the tilt in your smartphone to know which
way to display the screen, but are also extremely common in the automotive world too. Safety systems such as airbags
use accelerometers to detect when an accident is occurring and then deploy, for instance.
Definition of Accelerometer
An accelerometer is a device that measures the proper acceleration of an object.
How Does an Accelerometer Work?
Accelerometers are sensors that contain a small, mobile mass inside. It can move in all directions, and it is this
movement that the sensor detects. As the object moves, it creates a change in the electrical charge, or voltage,
within the sensor, and it is this change that is converted into acceleration and directional data.
Three-axis accelerometers can detect movement in the three main directions, forwards/backwards, up/down and side to
side, often called the X, Y and Z axis. This allows your accelerometer to measure not just rate of acceleration, but
the direction of movement too.
Accelerometer vs. Gyroscope
Gyroscopes are another device designed to measure movement,
but they do work differently and are designed for different functionality. If you use a gyroscope, it measures
angular motion, that is, the rotation around an axis, where the accelerometer measures linear acceleration, that is
movement along a line.
This difference between rotational and linear movement plays out in how each type of sensor is used, and we can see
a good example in the AutoPi CAN-FD Pro . Used for
identifying vehicle diagnostics trouble
codes and various automation processes, AutoPi
devices fitted to your vehicle have both accelerometers and gyroscopes inside.
The accelerometer is used to measure your vehicle’s acceleration, essential for a number of safety systems, such as
the activation of your airbags in an accident. However, the gyroscope is used to measure rotational speed, and this
is used to monitor the orientation of the vehicle, which is used in electronic stability control (ESC)
systems, rollover detection and other systems to help maintain stability or implement safety processes.

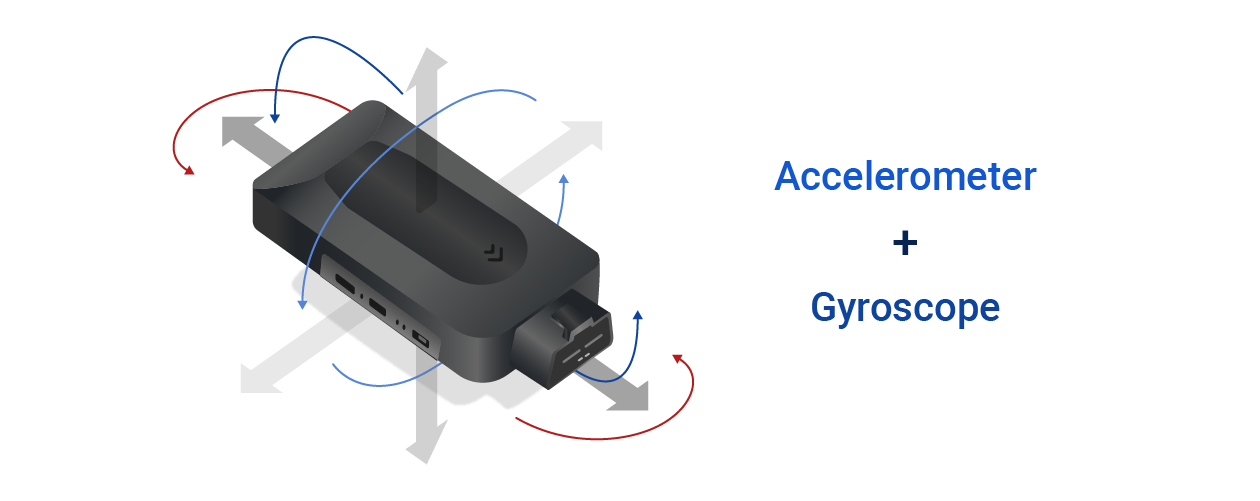

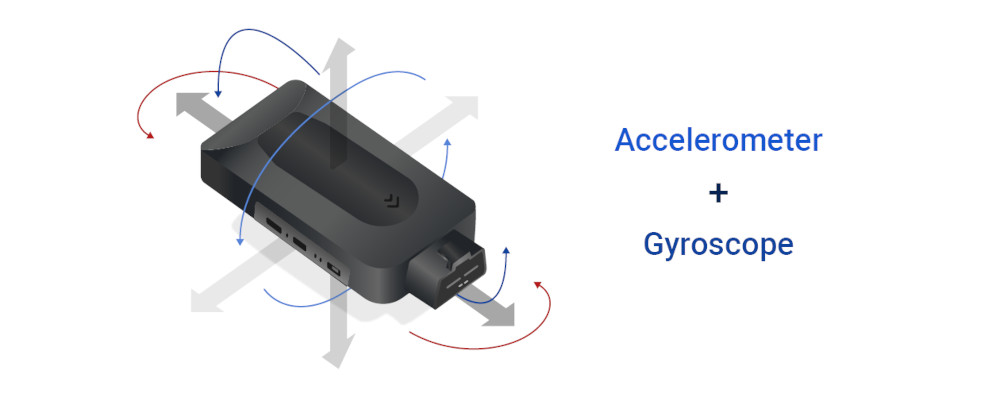

So, we can see that in a device like the AutoPi CAN-FD Pro, accelerometers and gyroscopes have an important and
complimentary part to play in essential vehicle systems.
How the AutoPi CAN-FD Pro Tracks Your Car’s Movements
With the AutoPi CAN-FD Pro , your car gets a better
understanding of its movements. There are two key sensors: one that tracks your speed, whether you’re speeding
up or slowing down, and another that looks at how your car’s turning and where it’s positioned. This gives your
car a real-time "sense" of the road and its surroundings.
All this data is collected instantly, so you know exactly how your car is moving at any moment. It’s as if your car
has its own awareness of the road. Plus, the device is
fully customizable, so if you have specific needs for tracking your vehicles, it can be adjusted to fit your
business perfectly.
Accelerometers in Use
Your vehicle uses accelerometers in a number of crucial systems, including both safety and navigation functionality.
Accelerometers are very good at detecting abrupt changes of vehicle velocity, not just acceleration, but
deceleration, when a vehicle slows quickly, such as in an accident.
This ability is used in many anti-collision systems, with airbags being deployed, pre-tensioning for seatbelts and
other safety processes activated when a collision is detected. Increasingly, accelerometers form part of modern
autonomous driving solutions too, and are frequently used in stability control systems, to help you stay safe on the
road.
Let's consider a simple mathematical example. Imagine you're driving your vehicle at a steady speed of 20 m/s (about
72 km/h). Suddenly, you see an obstacle and slam on the brakes, bringing the vehicle to a stop in 5 seconds. The
accelerometer in your vehicle would measure this deceleration to ensure the safety systems respond correctly.
The change in velocity (Δv) is 20 m/s (from 20 m/s to 0), and the time (t) over which this change occurred
is 5 seconds.
Acceleration (a) can be calculated as Δv/t, so in this case, it would be -20 m/s divided by 5 seconds, which
equals -4 m/s².
The negative sign indicates deceleration.
If this deceleration exceeds a certain threshold, it could trigger the vehicle's airbags.
While relatively simple, this illustrates how an accelerometer can be used in your vehicle, providing the critical
data for active responses to collisions or other events, enhancing your vehicle’s safety on the road.
Conclusion
Accelerometers may not seem like the kind of technology that advances an industry, in reality your vehicle is much
safer by using them. Bit its not just safety, accelerometers allow your vehicle’s systems to ‘see’ what the car is
doing, its orientation and so on, and are crucial to enabling the very latest AI driven autonomous driving
capabilities we are seeing today.
As we have shown, accelerometers may be quite simple devices in themselves, but they are an integral part of
cutting-edge technology that is transforming the automotive industry.
