J2534 Explained: What You Need to Know in 2024

Updated at 25 Jul, 2024

— Get to know the basics of J2534 and how it helps with car diagnostics and reprogramming, making vehicle maintenance easier for everyone.

J2534 Explained: What You Need to Know in 2024

J2534 is a standard that's revolutionizing vehicle diagnostics and programming.

At AutoPi, our mission is to uncover this technology and show you how it can make your life easier. Our team, including both sales and developers, has put together this guide to help you understand J2534, even if you're just starting out.

In this guide, we'll start by explaining what J2534 is and why it matters. Then, we'll dive into how it works, explore common use cases, and discuss some of the challenges it presents.

We want to guide you step-by-step, making the complex simple and the technical accessible.

Let's begin this journey together.

What is J2534?

J2534, officially known as the SAE J2534 standard, is a protocol developed by the Society of Automotive Engineers (SAE). It is designed to enable communication between a vehicle's electronic control units (ECUs) and diagnostic or reprogramming tools.

This standard allows independent repair shops and technicians to perform diagnostics and reprogramming on various vehicle brands without needing manufacturer-specific tools.

J2534 plays a crucial role in modern vehicle diagnostics and reprogramming. Here are some key benefits:

  • Universal Compatibility: J2534 enables the use of a single diagnostic tool across multiple vehicle brands, eliminating the need for numerous OEM-specific tools.

  • Cost Savings: By using J2534-compliant tools, repair shops and technicians can reduce their investment in expensive proprietary diagnostic equipment.

  • Enhanced Diagnostics and Repairs: J2534 facilitates more accurate diagnostics by allowing access to a vehicle's ECUs, leading to better repair outcomes.

  • Supporting the Right to Repair: J2534 promotes consumer choice and fair competition by making diagnostic and reprogramming tools more accessible and affordable.

One of our developers explained it like this: Think of J2534 as a common language that different vehicle systems and diagnostic tools use to communicate. Just like how people from different countries might use English as a common language to understand each other, J2534 ensures that different diagnostic tools can understand and interact with a vehicle's systems.

In other words, J2534 creates a universal method for diagnostic tools to "talk" to a car’s various systems, making it easier to diagnose and fix issues regardless of the vehicle's make or model.

J2534-1 and J2534-2

To provide more context, it's important to understand the differences between J2534-1 and J2534-2:

  • J2534-1: This is the original version of the standard, introduced to facilitate basic diagnostics and ECU reprogramming.

  • J2534-2: This version includes enhancements and new features, such as additional protocol support and improved reprogramming capabilities. It builds on J2534-1 to offer more comprehensive diagnostic and reprogramming functions.

By understanding these versions, you can better appreciate the evolution of J2534 and its expanding capabilities in vehicle diagnostics.

In the next section, we'll delve into the key components of J2534 and explain how it works. This will help you grasp the technical aspects and practical applications of this powerful standard.

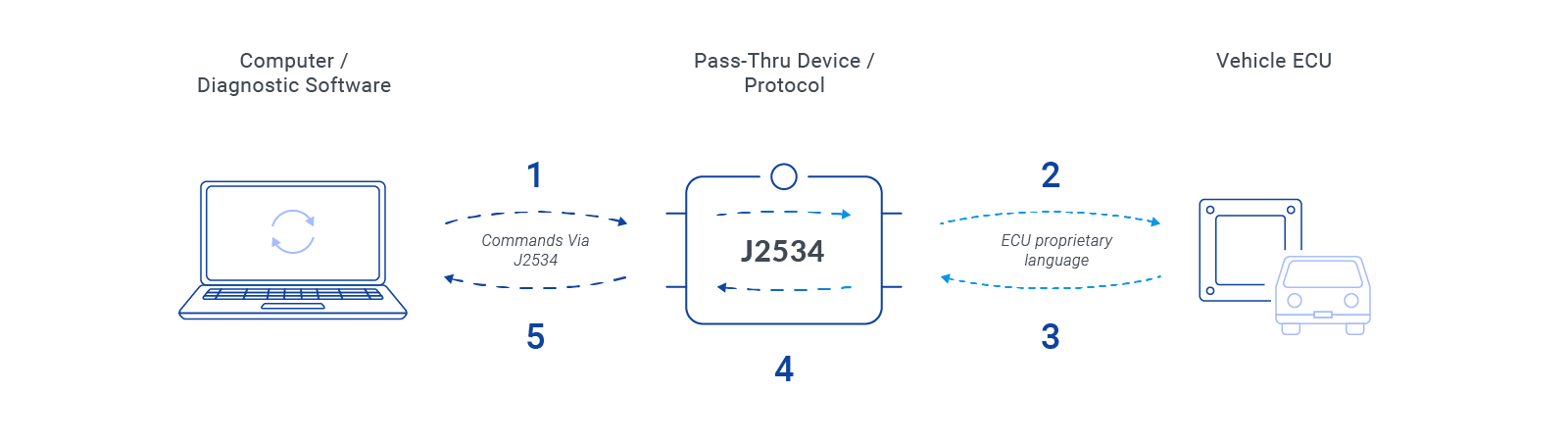

J2534 pass-thru works via Dagnostic Software to send and receive data from vehicles


How J2534 Works

To understand how J2534 works, it’s essential to get acquainted with its key components—the hardware and software of J2534—and the step-by-step process it facilitates for vehicle diagnostics and reprogramming.

J2534 Pass-Thru Device: This hardware component acts as a bridge between your diagnostic tool and the vehicle's electronic systems. It connects to the vehicle’s OBD-II port and enables the transfer of data between the diagnostic tool and the vehicle's ECUs.

J2534 Software: This is the program running on your diagnostic tool or computer that interprets and sends commands to the vehicle's ECUs. The software initializes communication, reads data, and performs reprogramming tasks.

Step-by-Step Guide to J2534 Communication

Now, we'll walk you through the process of how J2534 enables communication between your diagnostic tool and the vehicle's ECUs. From connecting the hardware to interpreting diagnostic codes and reprogramming ECUs, we'll cover each step in detail to give you a clear understanding of how this technology works in practice.

  1. Connect the Device

    • The OBD-II port, typically located under the vehicle’s dashboard, is where the pass-thru device is connected. This port serves as the gateway for communication between the vehicle's ECUs and external diagnostic tools.

    • Simply plug the J2534 pass-thru device into the OBD-II port to establish a physical connection.

  2. Activate Communication

    • Once the pass-thru device is connected, the J2534 software on the diagnostic tool establishes communication with the vehicle’s ECUs. This involves sending initial commands to identify and connect with the various ECUs.

    • The software will automatically detect the vehicle's systems and prepare them for data exchange.

  3. Read Diagnostic Codes

    • The diagnostic tool can now read DTCs stored in the ECUs. These codes indicate issues within the vehicle’s systems. The software translates these codes into understandable terms, helping technicians diagnose problems accurately.

    • By reading these codes, you can identify specific problems and understand the health of different vehicle systems. (Here's an example of a DTC code)

  4. Reprogram ECU

    • The J2534 software can also reprogram ECUs by updating their software. This process involves sending new software or calibration files to the ECUs to enhance performance or resolve issues.

    • Follow the prompts on the software to uploads new ECU firmware or updates, ensuring that the vehicle's system are running the latest and most efficient versions.

By following these steps, J2534 facilitates a seamless communication process between your diagnostic tools and the vehicle's electronic systems, enabling comprehensive diagnostics and effective reprogramming.

To further illustrate these steps, we have included a table and an image below that break down each step and provide a visual representation of the process. This will help you understand each stage more clearly and see how J2534 integration works in practice.

Diagnostic Software
J2534 Pass-Thru Device
Vehicle ECU
Result
Sends a standard language command, e.g., "Retrieve the error codes." Interprets the command from the diagnostic software. - -
- Converts the command into the proprietary language of the specific ECU. - -
- Sends the translated command to the ECU. Receives and processes the command. -
- - Responds with error codes in its proprietary language. -
- Translates the ECU's response into the standard language of the diagnostic software. - -
Receives and displays the translated response (error codes). - - User now has access to the error codes of the vehicle.

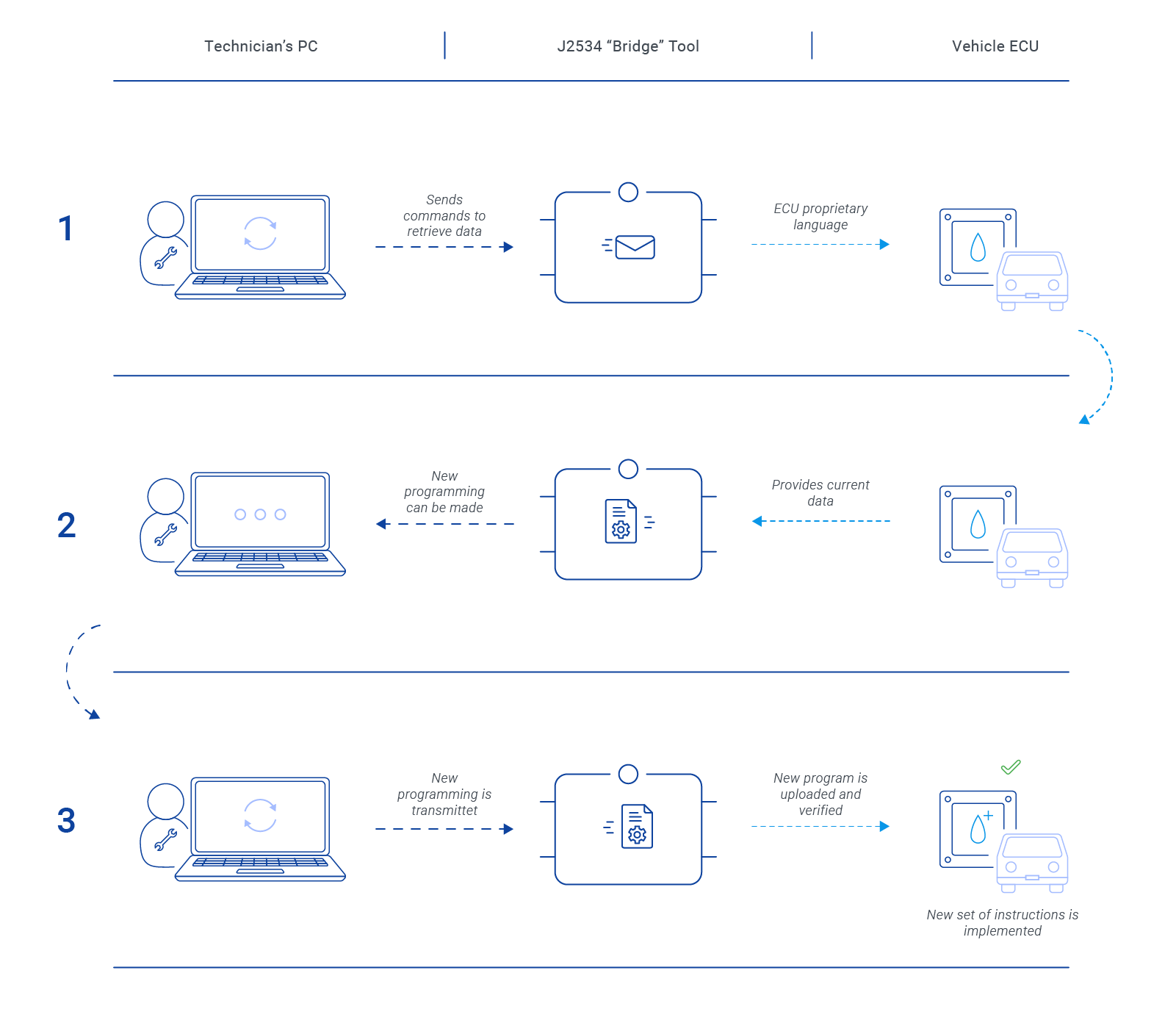

Illustration of how J2534 standard works as a tool when reprogramming vehicle's ECU

Next, we'll explore practical applications and use cases for J2534, showing you how this technology is utilized in everyday scenarios.


Practical Applications and Use Cases

J2534 is a versatile tool that shines in various vehicle diagnostics and reprogramming scenarios. Let's look at some common use cases and real-world examples that highlight its benefits and outcomes.

Diagnostics

  • Reading DTCs: When your car’s check engine light comes on, J2534-enabled diagnostic tools can read the DTCs stored in the ECUs. These codes help pinpoint specific issues affecting the vehicle.

  • Clearing DTCs: Once the issues are fixed, the same tool can clear the DTCs, turning off the check engine light and resetting the system.

ECU Reprogramming

  • Updating Software: J2534 tools let technicians update the software in a vehicle’s ECUs. This might include manufacturer-provided updates to boost performance, fix bugs, or address recall issues.

  • Customization: Some advanced users and shops use ECU reprogramming to customize vehicle settings for better performance or specific needs.

Monitoring Live Data

  • Real-Time Diagnostics: J2534 tools can monitor live data from various sensors in the vehicle, providing real-time insights into the vehicle’s performance. This helps diagnose issues that may not trigger a DTC.

  • Performance Monitoring: Technicians and enthusiasts can use live data monitoring to fine-tune vehicle performance and ensure all systems are working optimally.

Real-World Examples of J2534 Applications

Independent Repair Shops

An independent repair shop can use J2534 to service a wide range of vehicle brands without needing multiple OEM-specific tools. They can read and clear DTCs, reprogram ECUs, and monitor live data for diagnostics.

Dealerships

Dealerships can use J2534 to perform software updates and recall fixes on vehicles. For instance, a dealership might reprogram the ECU of a vehicle to address an emissions issue identified in a manufacturer recall.

Fleet Maintenance

Companies managing large fleets can use J2534 tools to ensure all vehicles are up-to-date with the latest software and are performing efficiently. Regular diagnostics and reprogramming help reduce downtime and maintenance costs.

Benefits and Outcomes of Using J2534

  • Efficiency: J2534 streamlines the diagnostic and reprogramming process, allowing for quicker identification and resolution of vehicle issues.

  • Cost-Effectiveness: By using a single tool for multiple vehicle brands, both independent shops and large operations can reduce their equipment costs significantly.

  • Improved Vehicle Performance: Regular updates and diagnostics ensure that vehicles run smoothly and efficiently, extending their lifespan and improving reliability.

  • Enhanced Customer Satisfaction: For repair shops, the ability to service a wide range of vehicles efficiently translates to better customer service and satisfaction.

Car mechanic using J2534 on the car

By using J2534 in these practical scenarios, technicians and repair shops can offer more comprehensive and efficient services. This ultimately benefits vehicle owners with better performance and reliability.

Our team of experienced developers and automotive professionals continuously supports and validates these practices, ensuring that the integration of J2534 meets the highest standards of quality and effectiveness.

Next, we'll discuss some challenges and considerations when using J2534, providing tips on how to overcome these obstacles for successful reprogramming.


Challenges and Considerations

While J2534 offers numerous benefits, it also comes with its own set of challenges. Understanding these challenges and knowing how to address them is crucial for successful diagnostics and reprogramming.

Our experienced team of developers and automotive professionals has identified key challenges and provided practical solutions, drawing from extensive industry knowledge and hands-on expertise to help you navigate these complexities effectively.

Common Challenges Faced When Using J2534

Compatibility Issues
  • Explanation: Not all vehicles and ECUs support J2534. Some older models or certain manufacturers may have proprietary systems that do not comply with the J2534 standard.

  • Solution: Before attempting to use J2534, check the vehicle’s compatibility. Many J2534 device manufacturers provide compatibility lists or databases. Always verify that the vehicle and its ECUs are supported.

Complexity
  • Explanation: Understanding and effectively using J2534 requires a learning curve. The process involves technical knowledge about ECUs, DTCs, reprogramming procedures, and using the software.

  • Solution: Invest time in training and education. Many J2534 tool manufacturers offer training programs, tutorials, and manuals. Starting with simpler tasks and gradually moving to more complex procedures can help build confidence and expertise.

Software Updates
  • Explanation: Keeping the J2534 software and pass-thru device firmware up to date is essential for maintaining compatibility and functionality. Outdated software can lead to communication errors and failed reprogramming attempts.

  • Solution: Regularly check for and install updates from the J2534 device manufacturer. Enable automatic updates if available, and subscribe to notifications from the manufacturer to stay informed about the latest updates and patches.

Limitations of J2534 and How to Address Them

Limited Support for Some Vehicles
  • Limitation: Some vehicles, especially older models or those from manufacturers with proprietary systems, may not be fully compatible with J2534.

  • Addressing It: For these vehicles, using OEM-specific tools might be necessary. It’s important to have a backup plan or alternative tools for such scenarios.

Potential for Errors During Reprogramming
  • Limitation: Errors during ECU reprogramming, such as power interruptions or software glitches, can potentially damage the ECU.

  • Addressing It: Ensure a stable power supply and internet connection during reprogramming. Follow manufacturer guidelines meticulously and use high-quality, reliable equipment.

Learning Curve
  • Limitation: The technical nature of J2534 can be daunting for beginners.

  • Addressing It: Continuous learning and hands-on practice are key. Engage in forums, attend workshops, and seek mentorship from experienced technicians.

Practical Tips for Overcoming These Challenges

  • Verify Compatibility: Always check the vehicle and ECU compatibility with J2534 before starting any diagnostic or reprogramming task.

  • Invest in Quality Tools and Training: Use high-quality J2534 pass-thru devices and software. Invest in training programs and continuously update your knowledge.

  • Maintain Up-to-Date Software: Regularly update your J2534 software and firmware to the latest versions to ensure smooth communication and functionality.

  • Ensure Stable Conditions: During reprogramming, ensure that the vehicle has a stable power supply. Avoid performing updates over unstable internet connections to prevent data corruption.

  • Follow Manufacturer Guidelines: Adhere to the guidelines provided by the J2534 device and software manufacturers. These guidelines are designed to minimize errors and ensure successful reprogramming.

  • Seek Help When Needed: Don’t hesitate to seek assistance from more experienced technicians, online forums, or manufacturer support when facing challenges.

By understanding and addressing these challenges, you can effectively use J2534 to its full potential, ensuring accurate diagnostics and successful reprogramming.

Next, we'll discuss AutoPi’s approach to J2534 integration and our future plans to enhance vehicle diagnostics and reprogramming capabilities.

AutoPi TMU CM4 on Platform
Upgrade Your Diagnostics with AutoPi!

Don’t miss out! Enhance your car maintenance with AutoPi’s powerful and customizable solutions.


AutoPi’s Approach and Future Plans

At AutoPi, we see the potential of J2534 technology and its importance for vehicle diagnostics and reprogramming. While we're not actively integrating J2534 right now, we find it fascinating and are ready to meet customer needs if asked.

Our main product, the AutoPi TMU CM4, is incredibly customizable. This makes it a great choice for incorporating various automotive technologies, including J2534. With the right setup and effort, the AutoPi TMU CM4 can support J2534, offering durable and reliable solutions for your vehicle needs.

  • Flexibility: The AutoPi TMU CM4 is built to be adaptable, allowing you to tweak and enhance its features to suit your specific requirements.

  • Compatibility: With the right configuration, our device can work with J2534 pass-thru devices, enabling detailed diagnostics and ECU reprogramming.

  • Durability: Designed for long-lasting performance, the AutoPi TMU CM4 is a dependable choice for both everyday use and more demanding tasks.

Future Plans and Client-Centric Approach

While we continue to explore J2534, our main goal is to offer versatile and customizable solutions. If you need J2534 functionality, we are committed to using the capabilities of the AutoPi TMU CM4 to meet those needs.

We believe in continuous learning and innovation. We aim to stay updated with the latest automotive technologies and ensure our products grow to meet your changing needs.


Conclusion

Understanding J2534 can open up new possibilities for vehicle diagnostics and repairs. By breaking down the complexities and guiding you through the essentials, we hope to make this powerful standard more accessible to everyone.

Stay tuned as we continues to innovate and explore the potential of J2534, helping you get the most out of your diagnostic tools.

If you're ready to enhance your vehicle diagnostics capabilities or have any questions about our products, don't hesitate to contact us.

Our team is here to help you make the most of J2534 technology and support your journey every step of the way. Reach out to us today to learn more about how AutoPi can meet your diagnostic needs and help you achieve better performance and reliability.
