The Raspberry Pi 5: An Advanced Feature Overview

Updated at 28 Sep, 2023

— The long-awaited Raspberry Pi 5 is finally here, boasting groundbreaking features that make it twice as fast as its predecessor. Dive in to explore!

The Raspberry Pi 5: An Advanced Feature Overview

It's been four years since the Raspberry Pi 4 made its debut.

Now, as the anticipation reaches its peak, the Raspberry Pi 5 emerges, setting a new benchmark. With a starting price of $60 for the 4GB model and $80 for the 8GB version, this isn't merely an update; it's a total transformation.

Almost every element of the platform has been enhanced, ensuring a seamless user experience without any corners cut. The in-house silicon's addition, which supports PCIe 2.0, coupled with the performance enhancements, means the Raspberry Pi series continues to redefine what's possible in compact computing.

Let's dive into the top features that sets this new model apart from its predecessor.

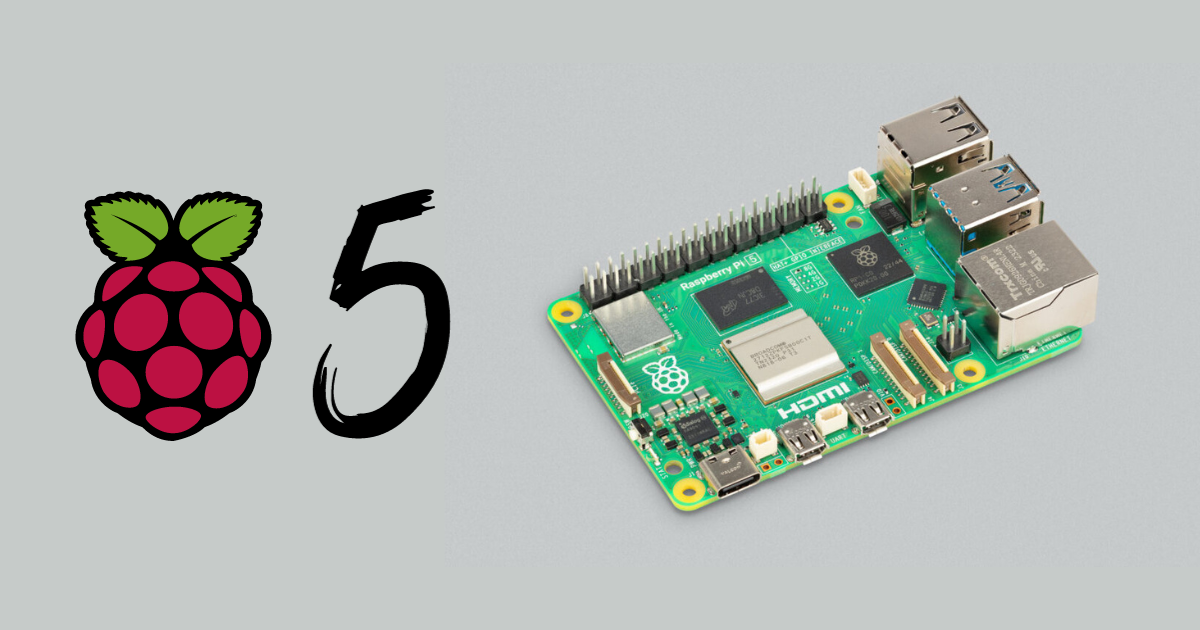

visual presentation of raspberry pi 5 in a simple format, and a raspberry pi logo beside the number 5.


  1. A Revolutionary New Platform and Chipset

    The Raspberry Pi 5 is built on three new chips, offering a significant jump in performance. The highlight is the BCM2712, a 16-nanometer application processor from Broadcom. This is a complete contrast from its predecessor, the 28-nanometer BCM2711 in Raspberry Pi 4. The latest processor boasts a quad-core 64-bit Arm Cortex-A76 processor, with a faster speed of 2.4GHz. This is not just an upgrade; it’s a complete overhaul.

    Close-up photo of part of the Raspberry Pi 5 board, centring the metal shield over the BCM2712 chip, with laser etching identifying the chip.


  2. Improved Graphics and Multimedia Capabilities

    The Raspberry Pi 5 comes equipped with Broadcom's new VideoCore VII GPU, capable of supporting two 4Kp60 HDMI displays simultaneously. This marks an improvement from the previous version, which could only handle one 4Kp60 or two 4Kp30. A 4Kp60 HEVC decoder and a new Image Sensor Pipeline enhance the multimedia experience further, promising sharper visuals and smoother operations.

    animated illustration of a gpu chip.


  3. A Look at the RP1 Chip

    Breaking away from the gigantic architecture of previous versions, the Raspberry Pi 5 introduces a chip let architecture. While the AP handles the major digital functions and fastest interfaces, most I/O functions are delegated to an I/O controller, leading to better performance and cost efficiency.

    The RP1 chip is this I/O controller, providing a variety of interfaces, from USB connections to GPIO. It's a product of years of development and is the most significant and expensive program Raspberry Pi has undertaken.

    Close-up photo of part of the Raspberry Pi 5 board, centring the RP1 chip, on which the Raspberry Pi logo and text identifying the chip are printed


  4. Power Management Like Never Before

    Every sophisticated piece of tech needs an advanced power management system. The Raspberry Pi 5 employs the Renesas DA9091 power-management IC. This is intricately designed to cater to the board's power needs and even includes an external real-time clock and a PC-style power button, catering to user convenience.

    Close-up photo of part of the Raspberry Pi 5 board, centring the DA9091 power-management IC, on which its name is printed


  5. Retained and Refined Features

    While there are many new introductions, certain elements from the Raspberry Pi 4 remain, but with improvements. For instance, the dual-band 802.11ac Wi-Fi and Bluetooth 5.0 are powered by a dedicated switched power supply rail for optimized power consumption.

    the raspberry pi computer close up, see the power supply rail on the computer


  6. Design and Form Factor Evolution

  7. At first glance, the Raspberry Pi 5 looks familiar. However, changes in design align with the capabilities of the new chipset. Gone is the four-pole composite video and analog audio jack, replaced by FPC connectors, enhancing connectivity options.

    Close-up photo of part of the Raspberry Pi 5 board, centring the two FPC connectors, labelled CAM/DISP 0 and CAM/DISP 1


Conclusion: The Future of Raspberry Pi 5 and AutoPi TMU

The Raspberry Pi 5 isn't just another iteration; it's a technological leap forward. With enhanced performance, improved multimedia capabilities, efficient power management, and refined design, it promises to redefine what compact computing solutions can offer.

The AutoPi Telematics Unit (TMU) has always been based on the Raspberry Pi. With the advent of the Raspberry Pi 5, the capabilities of the AutoPi are set to expand exponentially. The increased processing power, enhanced multimedia support, and efficient power management will ensure a smoother, more efficient performance of AutoPi systems. For those invested in the AutoPi TMU system and CAN bus integrations, the integration of the Raspberry Pi 5 heralds a new era of efficiency and power.

The Raspberry Pi 5 will be available to purchase before the end of October.
